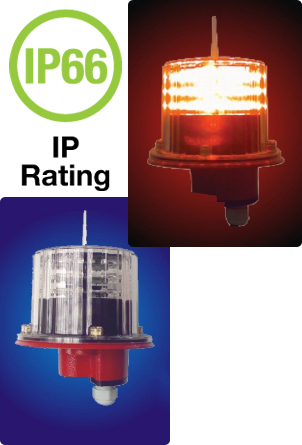

LED Aviation Obstacle Lights
Manufactured in Accordance:
Salient Features
- Low intensity type-B
- Very low power consumption
- Zero maintance
- Quick Investment return
- Inbuilt Day - night switch
- Tower water & dust tight fitting
- wide operational voltages in both AC & DC versions
- Intergrated cable terminal box with ployamide gland
- patent applied design
Applications :

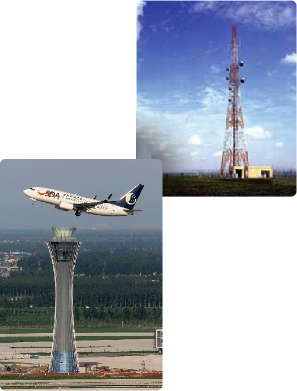

- Telecom Towers
- WAN Networking Towers
- Wind Energy
- Buildings and other tall structures
- Hazardous Locations
- Windsocks at airport and other locations
- ILS structures in airport

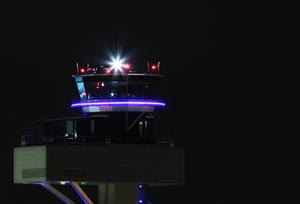

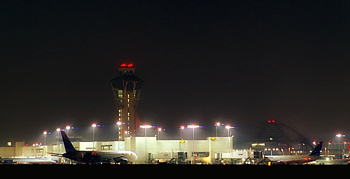

- ATC Towers
Specifications
- ICAO Annex 14 volume-1 third edition july 1999 chapter 6
- Low intensity type- B compliance as per ICAO
- Tested as per IS at Si tarc govt. institued NABAL Accredited lab
Photometry
- Intensity>45 CD
- Light output - Aviation RED
- All Around horizontal radiation pattern
- Vertical divergence upto 15 deg
- Ultra high bright AIGAP technology LEDs
- Expected life of 1,00,000 burning hours
Electrical Characteristics
- Multi redundant circuits
- Power consumption 5watts max
- Wide Voltage operation (70-270V AC and 20-60V-DC)
- Input surge protection and class || EMI filter
- Reverse polarity protected for DC
Mechanical Characteristics
- LM-6 Aluminium housing
- Aviation Red UV stabilized PP powder coated
- UV stabilized PC lens
- IP66 degree of protection
- -10 to +55 deg operation
- Intergrated brid Spike
- Intergrated IP66 terminal box
- 3/4" BSP threaded bottom fixing hub
